EEM- Monoblock Wall-Mounted Enclosures

EEM monoblock cabinets are wall mounted type cabinets designed for electrical distribution and protection applications inside the building. It is produced in different sizes and features as single-door and double-door. They can be produced in high protection class up to IP66 for indoor and outdoor applications.

General-purpose outdoor and indoor type welded cabinets,
Galvanized mild steel frame up to 3 mm
Reinforced side panels with special bending
High Protection class up to IP66
Strong structure produced with the latest welding technologies
Epoxy-Polyester Powder Coating,
Primer Painting for Outdoor Type applications,
Zinc coating solutions against corrosion and oxidation
PEM Screw-Nut Applications
Flexible cabling and Bus-Bar solutions
Low voltage distribution panels in standard sizes,
Wall mounted distribution board
Outdoor type Distribution board
Flush-mounted distribution board
Automation, Network and Device cabinets
Project-based production in special sizes
Main Frame

Manufactured from mild steel from 1.2mm up to 3.0mm depending on cabinet size. Parts made of mild steel are combined with the latest arc welding technologies. In accordance with the intended use, its resistance to environmental conditions is increased with primer paint. It is painted with Epoxy-Polyester powder coating in different colors. Necessary accessories for wall mounting, mounting preparation forbottom plates and connecting screws for mounting rails are produced as welded to the body.






Notes
  • Wall mounting accessories are supplied as a set with the cabinet.
  • Door lock and hinges are supplied assembled on the cabinet.
  • Mounting plates and other accessories to be used in the Cabinet must be ordered separately.
  • Cover profile set is optional. It must also be ordered.

Plinths

There are plinth corner made of 2.5mm galvanized steel and plinth covers made of 1.5mm galvanized steel for special applications. The plinth height is 100mm as standard. Plinth covers are painted with epoxy-polyester powder coating.




Notes
  • The screws required for mounting the plinth covers and plinth corner are supplied as a set with the cover.
  • The plinth set consists of 2 plinth covers and 2 plinth corner, produced in accordance with the cabinet width and depth dimensions.
  • Plinth covers are black regardless of cabinet color.
  • A higher plinth solution is created by mounting the plinth set one on top of the other.
Doors

It is manufactured from 1.5mm mild steel and painted with epoxy polyester powder coating. The doors produced with the option to open to the right or left are connected with 2-4 hinges and locked with a special locking mechanism. There is a single door or double door option. Polyurethane gasket can be applied to the doors in outdoor type and special applications. Polyurethane gasket which is applied directly on the cover increases the impermeability feature and resistance to vibration.





Notes
  • Doors are produced as right hinges. Different requests must be stated in the order.
  • Standard covers are without ventilation grill. Ventilation grill demands should be stated in the order.
  • A drawing in DWG format should be given for the desired ventilation grill and other special cut-outs on the cover.
  • Polyurethane cast gasket has been applied to the doors for impermeability and protection against vibration.
  • Please contact with the sales representative for special type of ventilation grills or forming requests and other special requests.
Cover Plate and Rail Set

Inside door cover rails and plates designed to prevent direct contact are produced from 1mm galvanized sheet and painted with epoxy-polyester powder coating.
Cover rails are designed to be attached after mounting. Cover plates have different sizes and options.






Notes
  • The cover rail set should be ordered in accordance with the cabinet width and height dimensions.
  • Cover plates are ordered separately in desired dimensions.
  • Mounting screws of cover rails are supplied as a set.
  • Mounting screws of cover plates are supplied with the cover plate.
  • Hinges and locks must be ordered separately for hinged cover plate.
  • A drawing in DWG format should be given for the desired ventilation grill and other special cut-outs on the cover plates.



EEM Wall-Mounted Electrical Distribution Enclosures

EEM monoblock cabinets are wall mounted type cabinets designed for electrical distribution and protection applications inside the building. It is produced in different sizes and features as single-door and double-door. They can be produced in high protection class up to IP66 for indoor and outdoor applications.

Applications
  • Electrical Infrastructure applications
  • Distribution and protection panels inside the building
  • Industrial automation systems
  • Public Enterprises
  • Office Blocks
  • Home applications

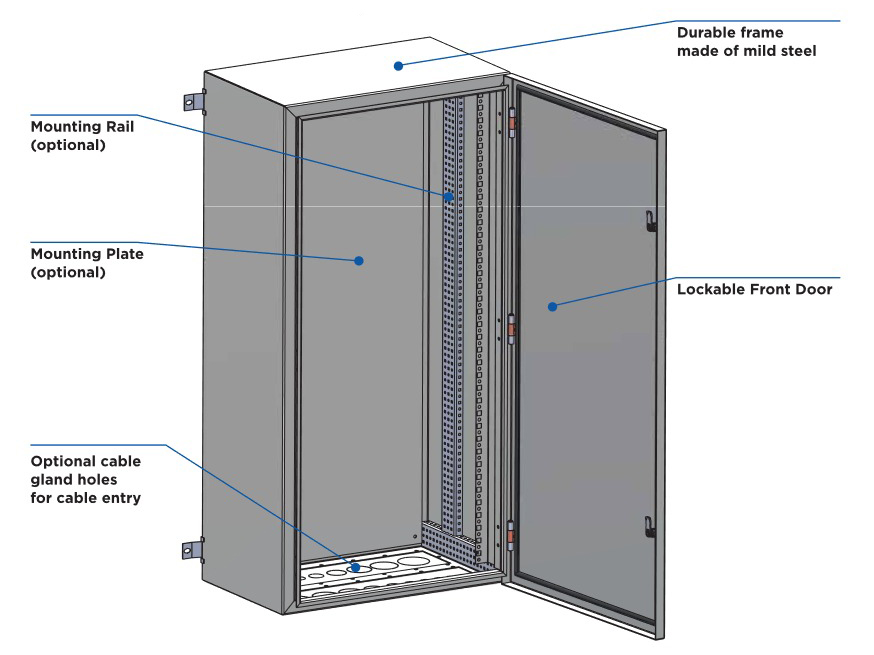

Main Frame

Manufactured from mild steel from 1.2mm up to 3.0mm depending on cabinet size. Parts made of mild steel are combined with the latest arc welding technologies. In accordance with the intended use, its resistance to environmental conditions is increased with primer paint.
It is painted with Epoxy-Polyester powder coating in different colors. Necessary accessories for wall mounting, mounting preparation for bottom plates and connecting screws for mounting rails are produced as welded to the body.






Notes
  • Wall mounting accessories are supplied as a set with the cabinet.
  • Door lock and hinges are supplied assembled on the cabinet.
  • Mounting plates and other accessories to be used in the Cabinet must be ordered separately.
  • Cover profile set is optional. It must also be ordered.

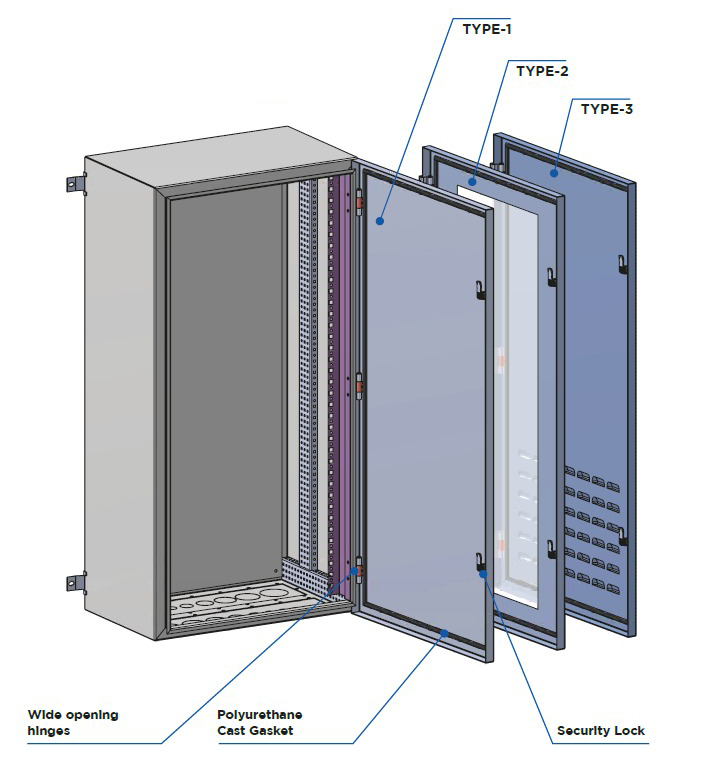

Doors
It is manufactured from 1.5mm mild steel and painted with epoxy polyester powder coating. The doors produced with the option to open to the right or left are connected with 2-4 hinges and locked with a special locking mechanism. There is a single door or double door option. Polyurethane gasket can be applied to the doors in outdoor type and special applications. Polyurethane gasket which is applied directly on the cover increases the impermeability feature and resistance to vibration.




Notes
  • Doors are produced as right hinges. Different requests must be stated in the order.
  • Standard covers are without ventilation grill. Ventilation grill demands should be stated in the order.
  • A drawing in DWG format should be given for the desired ventilation grill and other special cut-outs on the cover.
  • Polyurethane cast gasket has been applied to the doors for impermeability and protection against vibration.
  • Please contact with the sales representative for special type of ventilation grills or forming requests and other special requests.

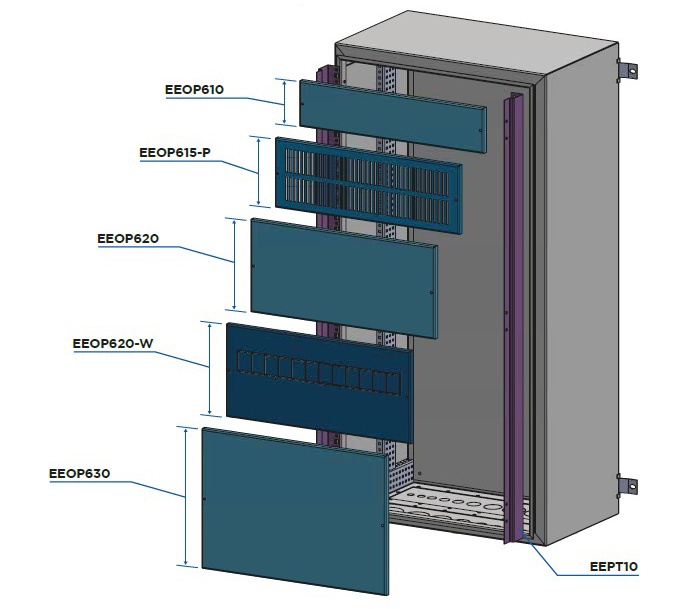

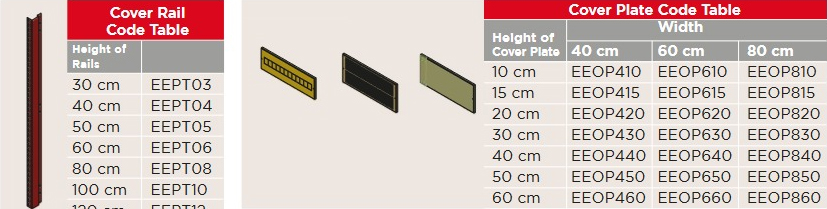

Cover Plate and Rail Set
Inside door cover rails and plates designed to prevent direct contact are produced from 1mm galvanized sheet and painted with epoxy-polyester powder coating. Cover rails are designed to be attached after mounting. Cover plates have different sizes and options.







Notes
  • The cover rail set should be ordered in accordance with the cabinet width and height dimensions.
  • Cover plates are ordered separately in desired dimensions.
  • Mounting screws of cover rails are supplied as a set.
  • Mounting screws of cover plates are supplied with the cover plate.
  • Hinges and locks must be ordered separately for hinged cover plate.
  • A drawing in DWG format should be given for the desired ventilation grill and other special cut-outs on the cover plates.

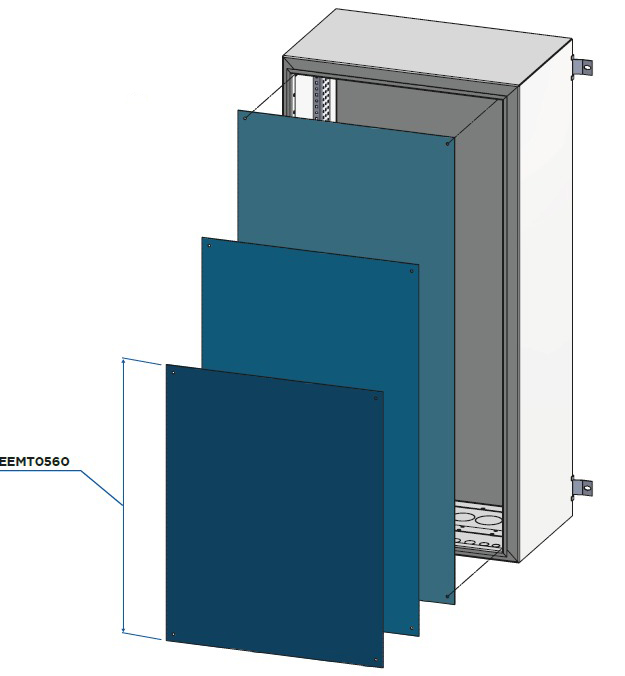

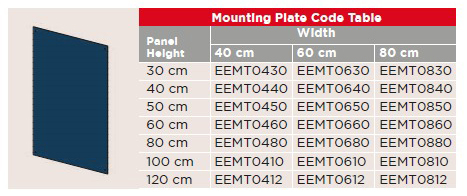

Mounting Plate and Mounting Rails
Mounting Plates, mounting rails and other accessories are manufactured from 2mm mild steel. They are suitable for standard cabinet dimensions and are easily mounted. Mounting plates and accessories are determined according to the project requirement and ordered separately.







Notes
  • Mounting plates and mounting rails must be ordered separately in desired dimensions.
  • Mounting plates can be produced in different sizes.
  • There is no any cut-out on the standard mounting plates. Please contact with sales representative for special requests.

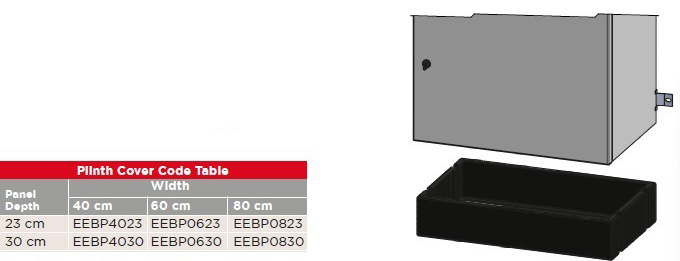

Plinths
There are plinth corner made of 2.5mm galvanized steel and plinth covers made of 1.5mm galvanized steel for special applications. The plinth height is 100mm as standard. Plinth covers are painted with epoxy-polyester powder coating.




Notes
  • The screws required for mounting the plinth covers and plinth corner are supplied as a set with the cover.
  • The plinth set consists of 2 plinth covers and 2 plinth corner, produced in accordance with the cabinet width and depth dimensions.
  • Plinth covers are black regardless of cabinet color.
  • A higher plinth solution is created by mounting the plinth set one on top of the other.

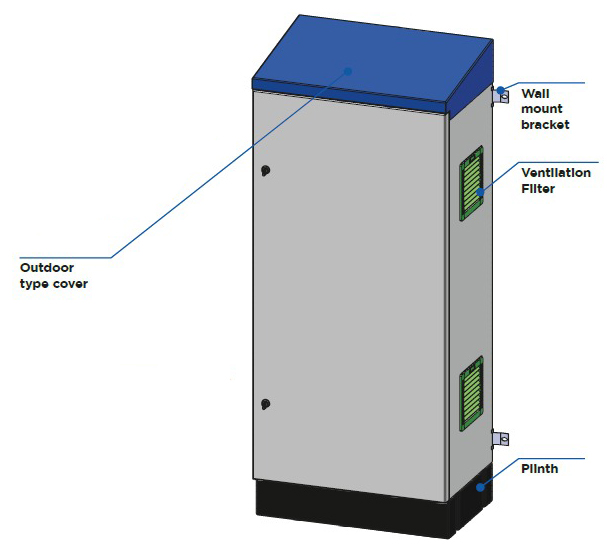

Accessories for Outdoor Application
There are accessories for outdoor type applications in wall-mounted monoblock panels. There are protective caps and input and output modules for cabinets with high protection class up to IP64. All mounting plates used in outdoor type panels and profiles are also produced from galvanized steel and painted with epoxy-polyester powder coating.
Dip galvanized protection and primer paint applications are optionally offered before painting on the panels to be used in outdoor applications.




Notes
  • All accessories required for mounting are supplied with the outdoor type top cover.
  • Ventilation duct covers and dust filter sheets are supplied with mounting screws.
  • Dust filters are not supplied with the cabinet Please contact with sales representative for Input - Output modules and other accessories and other special requests.
